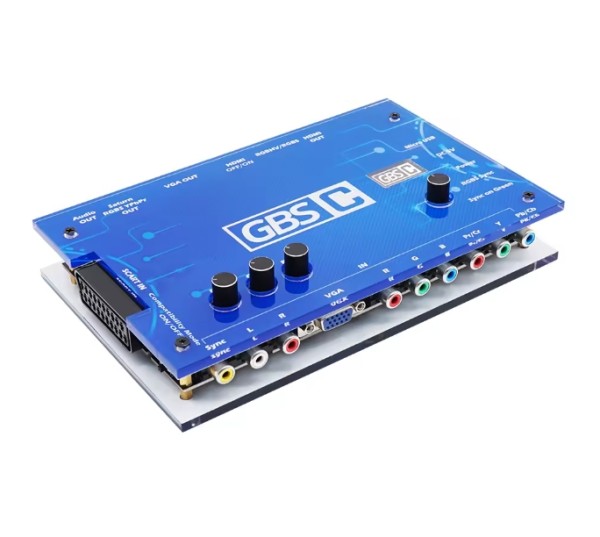

GBS Control Video Converter GBSC RGBs SCART Ypbpr Signal to VGA HDMI
GBS control is an alternative firmware for Tvia Trueview5725 based upscalers / video converter boards.
Its growing list of features includes:
* very low lag
* sharp and defined upscaling, comparing well to other -expensive- units
* no synchronization loss switching 240p/480i (output runs independent from input, sync to display never drops)
* on demand motion adaptive deinterlacer that engages automatically and only when needed
* works with almost anything: 8 bit consoles, 16/32 bit consoles, 2000s consoles, home computers, etc
* little compromise, eventhough the hardware is very affordable (less than $30 typically)
* lots of useful features and image enhancements
* optional control interface via web browser, utilizing the ESP8266 WiFi capabilities
* good color reproduction with auto gain and auto offset for the tripple 8 bit @ 160MHz ADC
* optional bypass capability to, for example, transcode Component to RGB/HV in high quality
Supported standards are NTSC / PAL, the EDTV and HD formats, as well as VGA from 192p to 1600x1200 (earliest DOS, home computers,PC). Sources can be connected via RGB/HV (VGA), RGBS (game consoles, SCART) or Component Video (YUV).Various variations are supported, such as the PlayStation 2's VGA modes that run over Component cables.
